                       USB2 - CCD

USB 2.0 CCD Line Scan Camera with Framecounter

Key Features:

¤  CCD line scan camera system.

¤ 2048 / 3648 Pixels, low noise.

¤ 12 Bit ADC.

¤ 1.1 ms or 7.6 ms exposure time.

¤ Up to 940 lps.

¤ Optional Contax / M42 or other lens mount.

¤ USB 2.0 - Bus.

¤ Drivers for Win 98 /2000  / XP,
    Visual Basic and LabView.

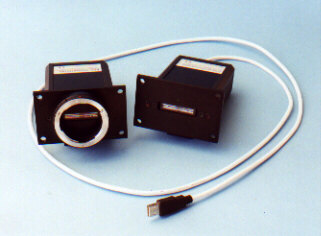

usbccd2048

Overview:

The USB2-CCD line scan cameras are easy to use, complete camera systems for the visible range. It includes a low noise line scan camera head with USB interface. Additional components are not required.
getacro(1)

More Information:
PDF datasheet

(Right click the file to store the pdf file on your disk.)

  u22c14.pdf   (520 kB) USB2-CCD 2048A-14   (pixel size 14 µ x 14 µ)   datasheet (Rev 1.0 ).

  u22c200.pdf (520 kB) USB2-CCD 2048B-200  (pixel size 14 µ x 200 µ) datasheet (Rev 1.0 ).

  u23c2000.pdf (520 kB) USB2-CCD 3600-200  (pixel size 8 µ x 200 µ) datasheet (Rev 1.0 ).

USB-CCD-2048,  last updated: 02/2010.

Specifications are subject to change without notice.
